Educational Zoom Stereo Microscope With Built-in Indicator System

Product Categories

DongGuan Sinowon Precision Instrument Co., Ltd. （2）

Contact Now

Name: Educational Zoom Stereo Microscope With Builtin Indicator System
Brand: Sinowon
Price: 1 USD

Brand Name : Sinowon

Model Number : DVS-0850

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T in advance

Supply Ability : 100 sets per month

Delivery Time : 10 days

Packaging Details : plywood

Optical System : Parallel optical zoom system

Zoom Objective : 0.8X～5X

Viewing Head : Binocular head, 20°inclined,Interpupilary distangce 55-75mm

Eyepiece : Eyepiece for Main Viewing Head 10X/Φ22

Pointer : Red and Green LED

Illumination : Optional Ring illumination（LED，fluorescent）

Contact Now

Educational Zoom Stereo Microscope With Built-in Indicator System

DVS-0850 Series Features:

● Adopt the Galilean optical system.

● Can apply for double people observations of the same specimen simultaneously,eliminated the defects of digital teaching.

● The built-in indicator system, display of double color in red and green,can switch as request, convenient to focus the same target.

Specification:

	DVS-0850
Optical System	Parallel optical zoom system
Zoom Objective	0.8X～5X


Viewing Head	Binocular head, 20°inclined,Interpupilary distangce 55-75mm
Viewing Head	Optional Tilting binocular eyepiece tube, 0-35°inclined, Interpupilary distangce 55-75mm
Objective	Wd:78mm 1X Plan achromatic objective
	Optional Wd:276mm 0.3X Achromatic objective
	Optional Wd:195mm 0.5X Achromatic objective
	Optional Wd:126mm 0.5X Plan apochromatic objective
	Optional WD:32.5mm 2X Plan achromatic objective
Eyepiece	Eyepiece for Main Viewing Head 10X/Φ22
Eyepiece	Eyepiece for Side Viewing Head 10X/Φ22
Pointer	Red and Green LED
Illumination	Optional Ring illumination(LED,fluorescent)
Working Distance	78mm
Focusing Range	215mm
Base Stage	420mm×350mm
Toughened glass stage	250mmx250mm
Optional Accessories	Coaxial illumination
	Epi-fluorescent attachment
	Iris diaphragm
	Beamsplitter(one port)
	Beamsplitter(two ports)
	Photography & video attachment
	Micrometter
	LCD Attachment

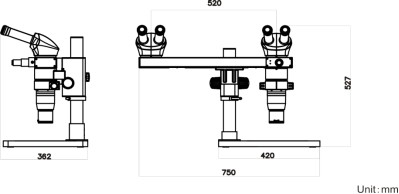

Dimension:

Educational Zoom Stereo Microscope With Built-in Indicator System
