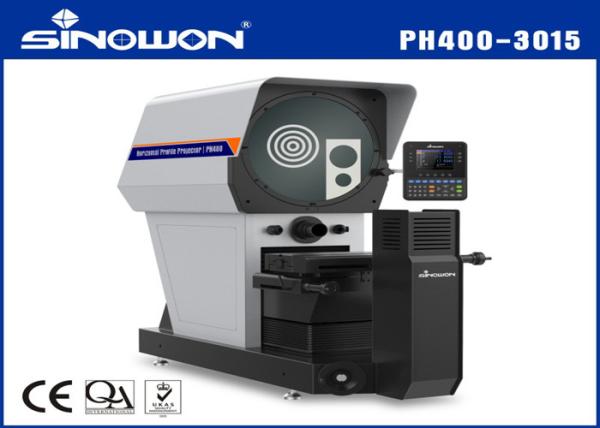

400mm Diameter Screen Digital Profile Projector With Large Working Travel

400mm Diameter Screen Horizontal Profile Projector With Large Working Travel

Application:

This horizontal profile projector is widely used in inspecting all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. It requires in the checking department and workshop and for machinery, mould, tool, electricity and light industry measurement.

Features:

• Lifting System is equipped with linear guide rail and precision screw drive, which makes lift driving more comfortable and stable;
• Coating process reflector, clearer image and great dustproof;
• Adjustable contour illumination and surface illumination, to meet difference application;
• Imported high light and long using life LED illumination,to meet precision measurement demand;
• High Resolution Optical System with supper image and magnification error less than 0.008%;
• Force cooling system, increase using life;
• Powerful and colorful digital readout DP400, realized fast and accurate 2D Measurement;
• Thermal Printer, data printing and saving;
• 10X is standard objectives, 5X,20X,50X,100X ,rotary table, Foot Switch ,Fixture etc is optional.

Specification:

Objective Lens

PH400-3015 Digital Horizontal Profile Projector.pdf
