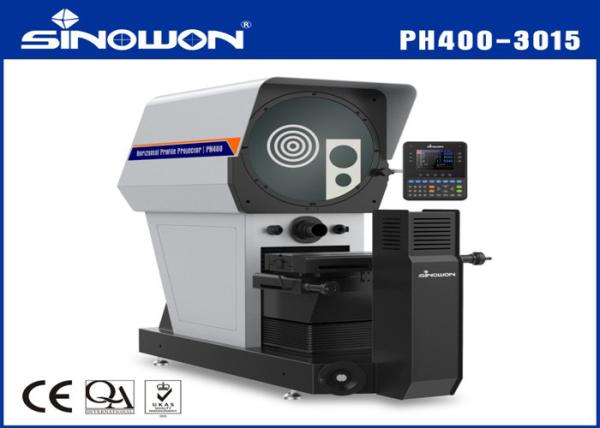

Digital Vertical Measuring Projector PH400-3015 Option Digital Readout DP400
Sinowon profile projector provides a time tested, cost effective solution for non-contact measurement.
At the heart of these systems are precision optics, superb lighting and a highly accurate workstage. They combine to ensure bright, sharp images and exceptional accuracy.
Vertical systems work well when the parts to be measured are flexible or soft.
Hot Sales:
1.The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable.
2.Coating process reflector, clearer image and great dustproof;
3.Adjustable luminance and reflected illumination, to meet difference workpiece demand
4.Import LED with high light and long life,to meet precision measurement demand
5.High Resolution Optical System with supper image and magnification error≤0.008%
6.Axial flow fan bothway strong heat dissipation, increase using life.
7.Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement.
8.Thermal Printer, data printing and saving
9.Optional objective lens 5X,10X,20X,50X,100X,Revolving table, Foot Switch ,Fixture etc
Specification:
| Name: Digital Vertical Measuring Projector |
| Product Model | PH400-3015 |
| Code # | 512-400 |
| Workbench Size | 455x126mm |
| Workbench Travel | 300x150mm |
| Focusing Travel | 120mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Worktable Loading Weight | 15Kg |
| Screen | Dia:412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’ |
| Digital Readout | DP400 (510-340)Multifunction colorful LCD digital readout |
| Illuminant | Transillumination:3.2V/10W LED Reflected illumination:220V/130W LED |
| Operational Environmental | Temp:20℃±5℃,Humidity:40％－70％RH |
| Power | AC110V/60Hz; 220V/50Hz,200W |
| Size(L×W×H) | 1099 x 1455 x 633mm |
| Package Size(L×W×H) | 1157x1355x653mm |
| Gross/Net Weight | 350/300kg |
Objective Lens:
| Magnification | 5X | 10X | 20X | 50X | 100X |
| View Field | φ80mm | φ30mm | φ15mm | φ6mm | φ3mm |
| Working Distance | 75mm | 75mm | 69mm | 44mm | 26mm |
PH400-3015 Digital Horizontal Profile Projector.pdf
