VP300-2010 Digital Profile Projector 300 Screen With 10X Lens VP300-2010

Brand Name : Sinowon

Model Number : VP300-2010

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD6380.00

Payment Terms : L/C, T/T, Western Union

Supply Ability : 25 sets per month

Delivery Time : 30 days

Packaging Details : Plywood

System Type : Bench Top

Screen Diameter (mm) : 300

X - Y Measuring Range (mm) : 200X100

Focus Range (mm) : 90

Profile Illumination : Standard

Surface Illumination : Standard

Contact Now

Digital Profile Projector Bench Top Vertical Comparator 300 Screen With 10X Lens VP300-2010

The VP300 vertical bench-top optical comparator offers high performance at a low price. Designed to meet the demands of modern industry, the VP300 is ideal for the rapid inspection of small light weight components, pressings, plastic moldings, electronic components, small turned parts, etc. Sinowon optical comparators combine mechanical stability with precision optics and versatile lighting to produce bright, sharp images and exceptional accuracy. The vertically positioned VP300 Optical Comparator models are available with a choice of digital readouts DP400, measuring software options, manual workstage travel, projection lens magnifications from 10x to 50x, and optional Edge Detection capability. Our proven mechanical designs are now enhanced with the latest metrology system for unmatched flexibility and productivity.

Features:

  • The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
  • With coating process reflector, clearer image and great dustproof;
  • Adjustable contour and surface illumination, to meet with difference workpiece demand;
  • Imported high light and long using life LED illumination ,to ensure precision measurement demand;
  • High resolution optical system with clear image and magnification error is less than 0.08%;
  • Powerful Bi-axial fan cooling system,highly increase using life;
  • Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
  • Built-in Mini-printer, can print and save data;
  • With standard 10X objective, optional 20X,50Xobjective,rotary table, foot switch ,clamp, etc.

Specification:

Product Name Ø300mm Digital Vertical Profile Projector
Reverse Image VP300-2010
Order Number #511-340
Metal Stage Size 258X358mm
Glass Stage Size 148X256mm
Stage Travel 200x100mm
Product Dimension(L×W×H) 988 x563 x 1224mm
Packing Dimension(L×W×H) 1200x800x1580mm
Focusing 100mm
Accuracy ≤3+L/200(um)
Resolution 0.0005mm
Load Capacity 10Kg
Screen Dia:φ312mm,Measurement Range ≤ Ø300
Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6’
Digital Readout DP400 (510-340) Multifunction colorful LCD digital readout
Illumination

Contour Illumination:3.2V/10W LED

Surface Illumination:3.2V/10W LED

Working Environment Temp 20℃±5℃,Humidity 40%-70%RH
Power Supply AC110V/60Hz; 220V/50Hz,150W
Cold-air Blowing System 3-axis Powerful Fan
Gross/Net Weight 220/170kg

Objective Lens:

Magnification 10X(Std.) 20X(Opt.) 50X(Opt.) 100X(Opt.)
Field of View φ30mm φ15mm φ6mm φ3mm
Working Distance 75mm 69mm 44mm 26mm

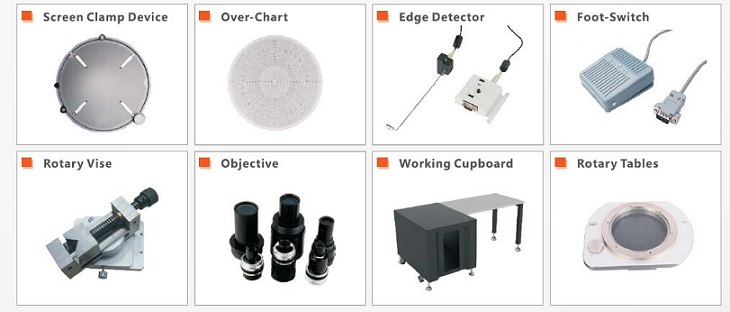

Accessories:

VP300-2010 Digital Profile Projector 300 Screen With 10X Lens VP300-2010
