Auto Position Optical Measuring System With Beams And Gantry Mechanical Structure

Brand Name : Sinowon

Model Number : Auto Vision 432

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T in advance

Supply Ability : 100 sets per month

Delivery Time : 25 work days

Packaging Details : plywood

X/Y-axis Stroke : 400x300mm

Load Capacity : 30Kg

Dimension : 1060*820*1680mm

Weight : 650Kg

Video Magnification : 22X~145X(19" Monitor)

Video System : Imported 1/3"Color CCD Camera

Contact Now


Auto Position Optical Measuring System With Beams And Gantry Mechanical Structure


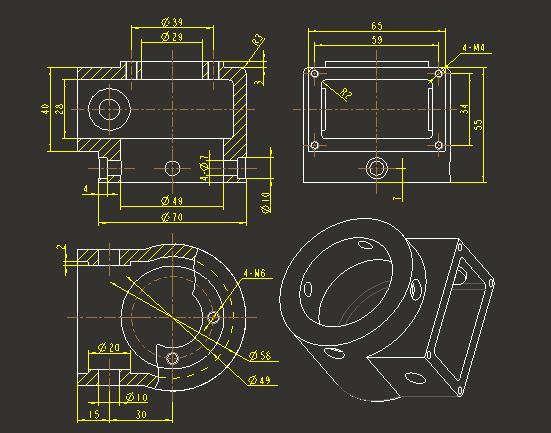

Application:

Application


Cutting, touch screen, mobile phones, medical equipment, PCB, Film, electronic carrier tape, rubber, clocks, gears, mechanical processing, automobile and motorcycle parts, bearings, motors, precision hardware, tools, electronic components and so on.



Products Characteristic:

  • High precision Jinan Qing marble base, beams and gantry mechanical structure, to ensure high measurement accuracy;

  • High precision imported guide screw, precision grinding stage ball screw and servo motor, to ensure the stability of position accuracy with high speed motion;

  • High accuracy imported non-contact gold plated steel grating measurement system and high accuracy working stage, to ensure accuracy within≤3+L/200mm;

  • High definitive imported 1/3 inch color camera and HD automatic continuous zoom lens, to ensure clear and real image without distortion;


Technical specification:

2.5D Model

AutoVision432

Code#

520-121

X/Y-axis Travel

400x300mm

Load Capacity

30Kg

Dimension

1060*820*1680mm

Weight

650Kg

Z-axis Travel

200mm

X/Y/Z 3-axis

Linear Scale

Imported Open Linear Scale,Resolution:0.0005mm

Guidance Mode

Precision Linear Guide, Double-track Double Slider Guide

Operation Mode

Joystick Controller, Mouse Operation, Automatic Detection Program

Accuracy

X/Y-axis:≤3+L/200(um)

Z-axis:≤4+L/200(um)

Repeatability

±2um

Video System

Imported 1/3"Color CCD Camera

6.5X Motorized Coaxial Zoom Lens

Optical Magnification:0.7X-4.5X;Video Magnification:22X~145X(19" Monitor)



Standard Delivery:

Product Name

Code#

Product Name

Code#

Fully-auto measuring software

IM 4.1

6.5x Automatic Zoom Lens

421-161

Calibration Block

581-801

Surface 5R/8D LED Illumination

425-141

Motion Controller

526-111

Contour Parallel LED Illumination

425-131

Imported 0.5um Linear Scale

581-201

LED Coaxial Cold Illumination

/

Data Processor

564-301

1/3”Color Camera

484-123

CCD Image Navigation

581-331

Video Capture Card

527-131

Joystick

581-871

PC/Monitor

/

Certification

/

Operation Manual

/



Optional Accessories:

Product Name

Code#

Product Name

Code#

Imported MCP Touch Probe

581-721

Manual Coaxial Lens

421-121

Imported Laser Sensor

581-361

2X Auxiliary Objective

423-200

3D Measuring Software

Im 3.1

0.5X Auxiliary Objective

423-050
