Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination

Product Categories

DongGuan Sinowon Precision Instrument Co., Ltd. （2）

Contact Now

Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination

Name: Optical Zoom Range Of 07X 45X Video Microscope System Built in LED Illumination
Brand: Sinowon
Price: 1 USD

Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination Manufactures

Brand Name : Sinowon

Model Number : VM-300

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 sets per month

Delivery Time : 15days

Packaging Details : plywood

Product Name : Video Microscope

Model : VM-300

Code# : 451-430

Electronic Magnification : 16X~206X (16:9 21”Monitor)

Optical Objective : 0.7X~4.5X horizontal zoom lens

Microscope Stand : Z-axis Travel: 150mm

Dimension : 290*280*400 mm

Packing Dimension : 445*410*355 mm

Contact Now

Optical Zoom Range Of 0.7X-4.5X Built-in LED Illumination Powered By Laptop Computer

Product Characteristics:

Integral design, exquisite, fashion, generous;
With high definition 0.7~4.5X horizontal zoom lens, it is more convenient and fast to switch objective magnification, and it can enlarge with high magnification with optional APO 5X/10X lens;
With precision coarse and fine lifting system, ensure perfect focus and clear image;

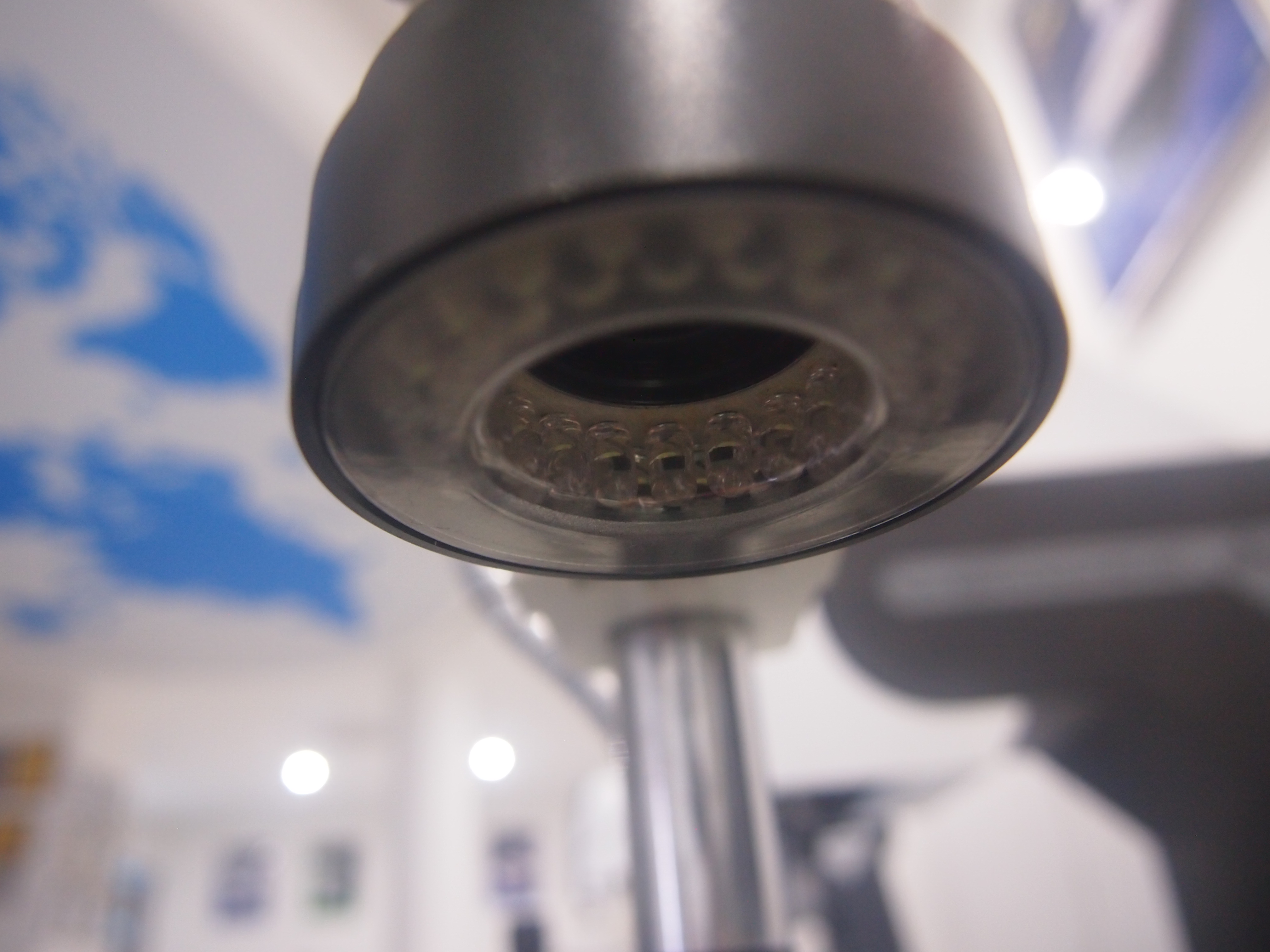

With adjustable LED bottom and surface illumination, when equipped with APO lens, it can used contour illumination and control brightness independently;
Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;
Simple external interface: 12V power supply input and USB/VGA video output, SD card hole to make installation simpler.

Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination

Application:

Video Microscope is widely used in observing translucent or opaque material in electronics, metallurgy, chemical and instrumentation industry such as metal ceramic, integrated block, printed circuit boards, liquid crystal plate, film, fiber, coating and other non-metallic materials. Trinocular Video Microscope is also suitable for medicine, agriculture, forestry, public security, schools, scientific research departments for observation and analysis.

Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination

Technical Specification:

Product Name	Video Microscope
Model	VM-300
Code#	451-430
Electronic Magnification	16X~206X (16:9 21”Monitor)
Optical Objective	0.7X~4.5X horizontal zoom lens Zoom ratio 6.5:1 1X C-mount Camera Adapter 10X APO Lens: WD:35mm
Camera Parameter	2 million pixel (1920*1080) Image Size:1/2.86” Frames Per Second:30fps
Camera Function	Photograph and Video Record Cross Line VGA/USB Output, SD Card Storage OSD: Comprehensive digital UI design, Wireless USB 2.0 Mouse Operation White Balance; Brightness Control; Digital Noise Reduction Picture Frozen,10X Digital Magnification
Measuring Function	Optional PC System and measuring software can measure image in the field of view.
Illumination	Bottom: Adjustable LED Illumination Surface: Adjustable LED Illumination
Microscope Stand	Z-axis Travel: 150mm Coarse/Fine Lifting System

Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination

Optical Zoom Range Of 0.7X - 4.5X Video Microscope System Built in LED Illumination VM-300 Coaxial illumination Video Microscope.pdf
